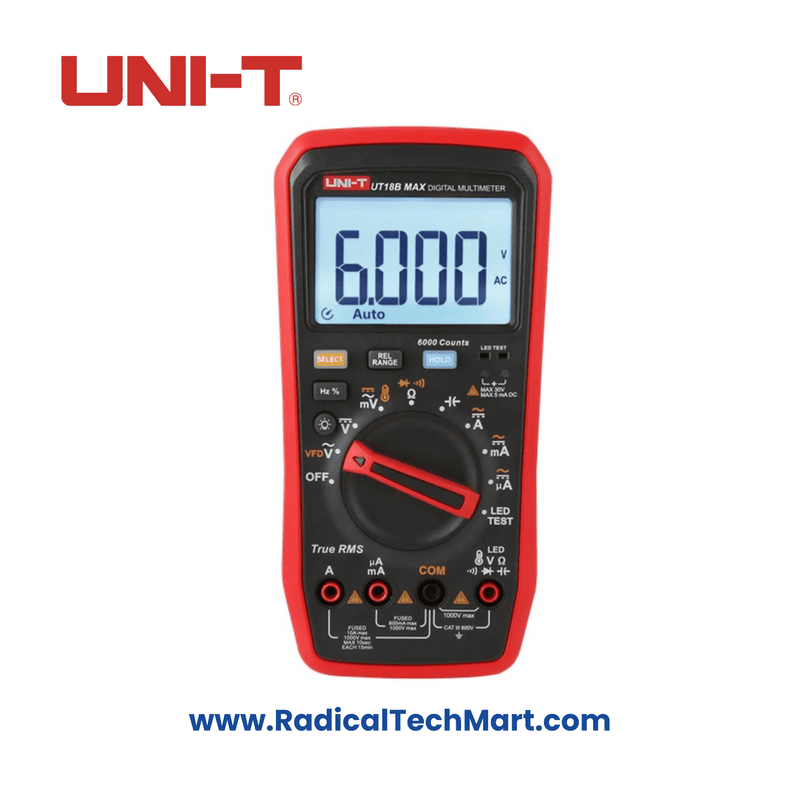

UNI-T UT 18B Max True RMS Digital Multimeters

The UT18B MAX True RMS multi-meter is a compact and portable tool designed for electronic and electrical engineers. It offers fast response times, strong resistance to electromagnetic interference (EMC), and comes equipped with both standard gold-plated test leads and fine-tipped test leads. The meter also provides full-range 1000V input protection, making it ideal for various testing needs.

Key Features:

• True RMS measurement for accurate readings.
• Compact design for portability and ease of use.
• V.F.D function for voltage frequency detection.
• Fast continuity measurement for quick circuit testing.
• Fast capacitance measurement for efficient component testing.
• Two types of test probes: standard and fine-tipped.
• Strong anti-interference capabilities, ensuring reliable measurements in electrically noisy environments.
• Full-range input protection (up to 1000V) for enhanced safety.

Specifications:

• Voltage (DC): 600.0mV to 1000V, with an accuracy of ±(0.4%+3).
• Voltage (AC): 600.0mV to 1000V, with an accuracy of ±(0.5%+5).
• VFD (Voltage): 600.0V, with an accuracy of ±(8%).
• Current (AC): 600.0µA to 10.00A, with an accuracy of ±(1.2%+3).
• Current (DC): 600.0µA to 10.00A, with an accuracy of ±(1.2%+3).
• Resistance: 600.0Ω to 60.00MΩ, with an accuracy of ±(0.5%+2).
• Capacitance: 6.000nF to 6000µF, with an accuracy of ±(2.0%+5).
• Frequency (Hz): 10Hz to 10MHz, with an accuracy of ±(0.1%+3).
• Duty Cycle: 1% to 99.9%, with an accuracy of ±(1.0%+4).
• Temperature (℃/℉): -55℃ to 500℃ / -67°F to 932°F, with an accuracy of ±2℃/±4℉.

Certificates: CE, UKCA, cETLus, REACH, RoHS compliant.

Warranty: As per brand policy.
